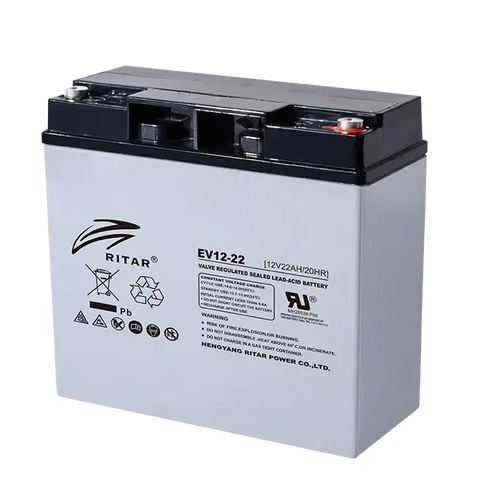

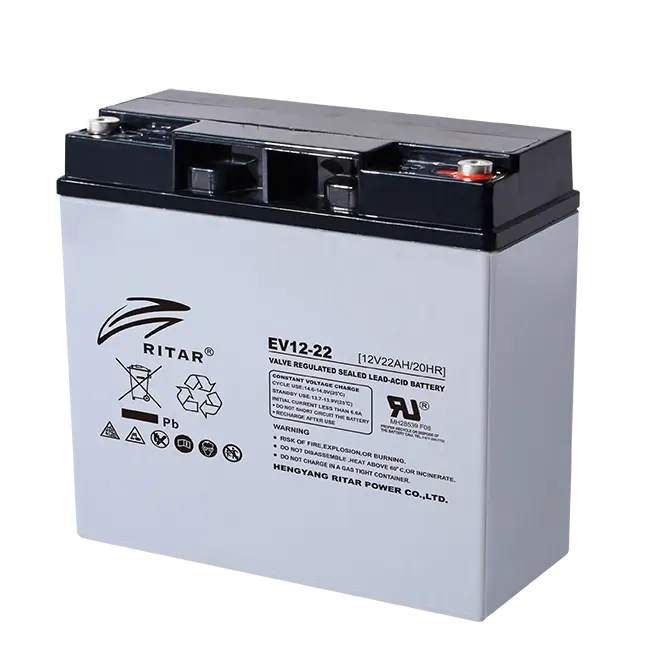

The Ritar EV12-22 (also known as RT12220EV) is a 12V 22Ah maintenance-free AGM deep-cycle battery specifically designed for frequent deep-discharge applications like electric vehicles, mobility scooters, wheelchairs, and golf buggies.
Key Specifications
| Technical Feature | Specification |
| Nominal Voltage | 12V |
| Rated Capacity | 22.0 Ah @ 20-hr rate (to 1.75V per cell at 25°C) |
| Cells Per Unit | 6 |
| Dimensions |
Length: 181 mm (7.13 in) Width: 77 mm (3.03 in) Height: 167 mm (6.57 in) Total Height: 167 mm (6.57 in) |
| Approx. Weight | 6.20 kg (13.7 lbs) $\pm$ 5% |
| Terminal Type | F13-BP (M5 bolt/nut style) or F18 options |
| Container Material | A.B.S. UL94-HB (UL94-V0 optional) |
